产品介绍：
摇臂快装吊环螺栓式
材质： 304#,316L
适用滤芯端头类型：222/翅尾，平压双开口，最大工作压力150PSI

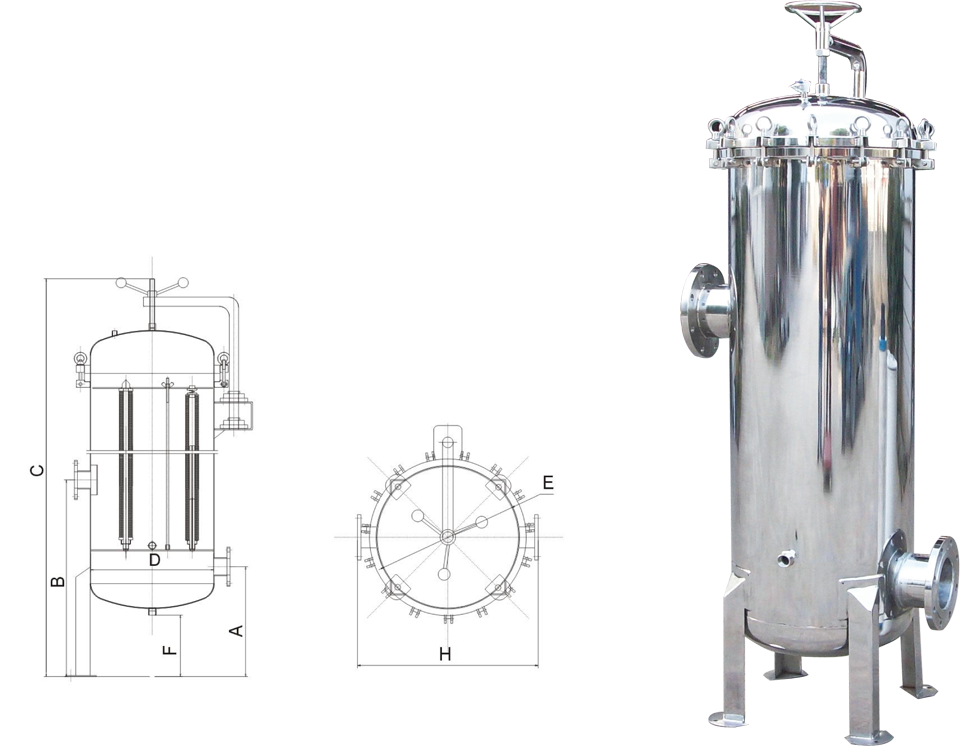

| 型号 |
A mm |
B mm |
C mm |
D mm |
E mm |
F mm |
H mm |
进/出水口 |
| 15 Round - 30"L |
370 |
800 |
1580 |
350 |
350 |
200 |
490 |
11/2"-2" |
| 15 Round - 40"L |
370 |
900 |
1830 |
350 |
350 |
200 |
490 |
11/2"-2" |
| 20 Round - 30"L |
390 |
900 |
1630 |
400 |
400 |
200 |
560 |
2"-3" |
| 20 Round - 40"L |
390 |
1000 |
1880 |
400 |
400 |
200 |
560 |
2"-3" |
| 27 Round - 30"L |
460 |
900 |
1680 |
450 |
450 |
250 |
610 |
2"-4" |
| 27 Round - 40"L |
460 |
1100 |
1930 |
450 |
450 |
250 |
610 |
2"-4" |
| 30 Round - 30"L |
480 |
900 |
1740 |
500 |
500 |
250 |
660 |
2"-4" |
| 30 Round - 40"L |
480 |
1100 |
1990 |
500 |
500 |
250 |
660 |
2"-4" |
| 36 Round - 30"L |
500 |
900 |
1780 |
550 |
550 |
250 |
710 |
21/2"-4" |
| 36 Round - 40"L |
500 |
1100 |
2030 |
550 |
550 |
250 |
710 |
21/2"-4" |
| 40 Round - 30"L |
560 |
1000 |
1850 |
600 |
600 |
300 |
760 |
21/2"-4" |
| 40 Round - 40"L |
560 |
1200 |
2100 |
600 |
600 |
300 |
760 |
21/2"-4" |
| 50 Round - 30"L |
580 |
1000 |
1880 |
650 |
650 |
300 |
810 |
3"-4" |
| 50 Round - 40"L |
580 |
1200 |
2130 |
650 |
650 |
300 |
810 |
3"-4" |
| 60 Round - 30"L |
590 |
1000 |
1900 |
700 |
700 |
300 |
880 |
3"-5" |
| 60 Round - 40"L |
590 |
1200 |
2150 |
700 |
700 |
300 |
880 |
3"-5" |
| 75 Round - 30"L |
610 |
1000 |
1950 |
750 |
750 |
300 |
950 |
3"-5" |
| 75 Round - 40"L |
610 |
1250 |
2200 |
750 |
750 |
300 |
950 |
3"-5" |
| 80 Round - 30"L |
620 |
1100 |
1970 |
800 |
800 |
300 |
1000 |
4"-6" |
| 80 Round - 40"L |
620 |
1250 |
2220 |
800 |
800 |
300 |
1000 |
4"-6" |
| 90 Round - 30"L |
650 |
1100 |
2140 |
850 |
850 |
300 |
1000 |
4"-6" |
| 90 Round - 40"L |
650 |
1250 |
2390 |
850 |
850 |
300 |
1000 |
4"-6" |
| 100 Round - 30"L |
670 |
1100 |
2070 |
900 |
900 |
300 |
1140 |
4"-6" |
| 100 Round - 40"L |
670 |
1350 |
2320 |
900 |
900 |
300 |
1140 |
4"-6" |
